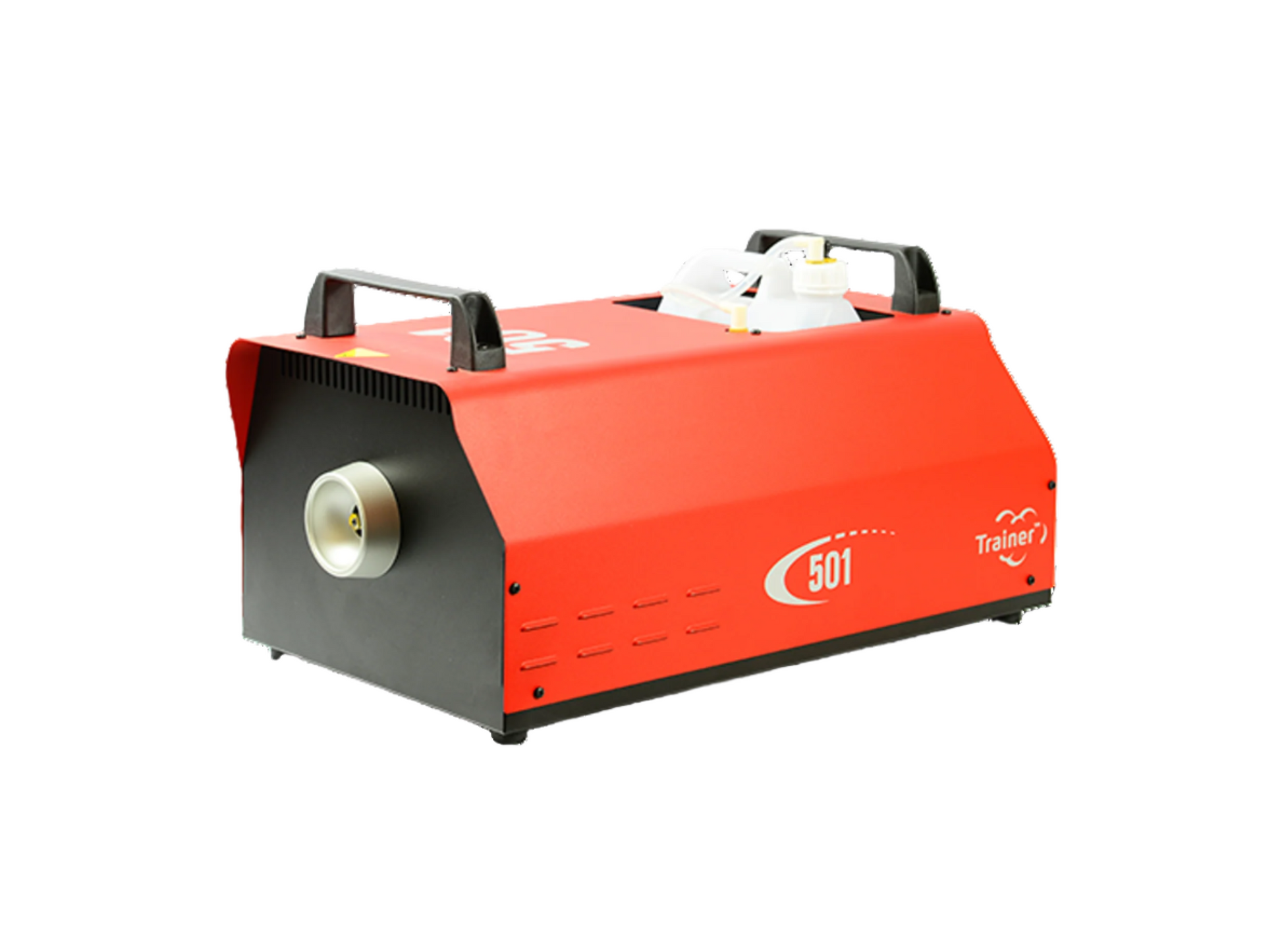

• Red portable smoke Trainer machine model 501 with black handles and fluid tank, designed for large-scale fire and safety training exercises.

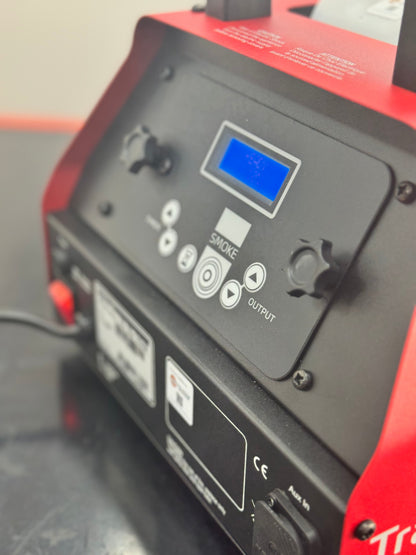

  • Close-up of the control panel on the 501 smoke Trainer machine, showing display, control buttons, and output settings.

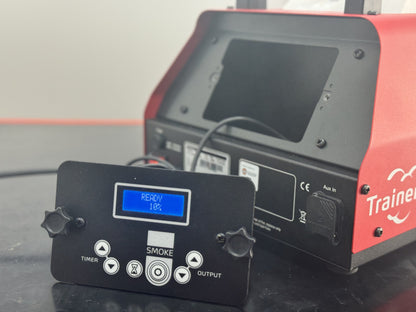

  • 501 smoke training machine with detachable control panel featuring display and adjustable timer, smoke, and output settings.

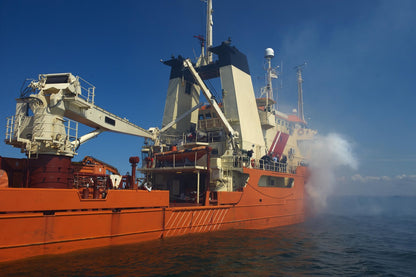

  • 501 Trainer smoke machine simulating onboard fire during marine safety training exercise on an orange vessel.

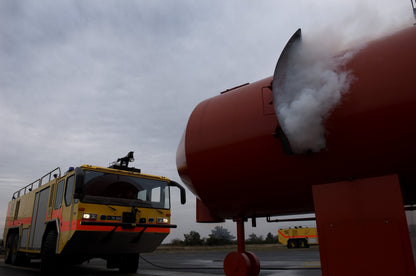

  • 501 Trainer smoke machine in action during fire training exercise, producing realistic smoke near a fire truck for emergency response practice.

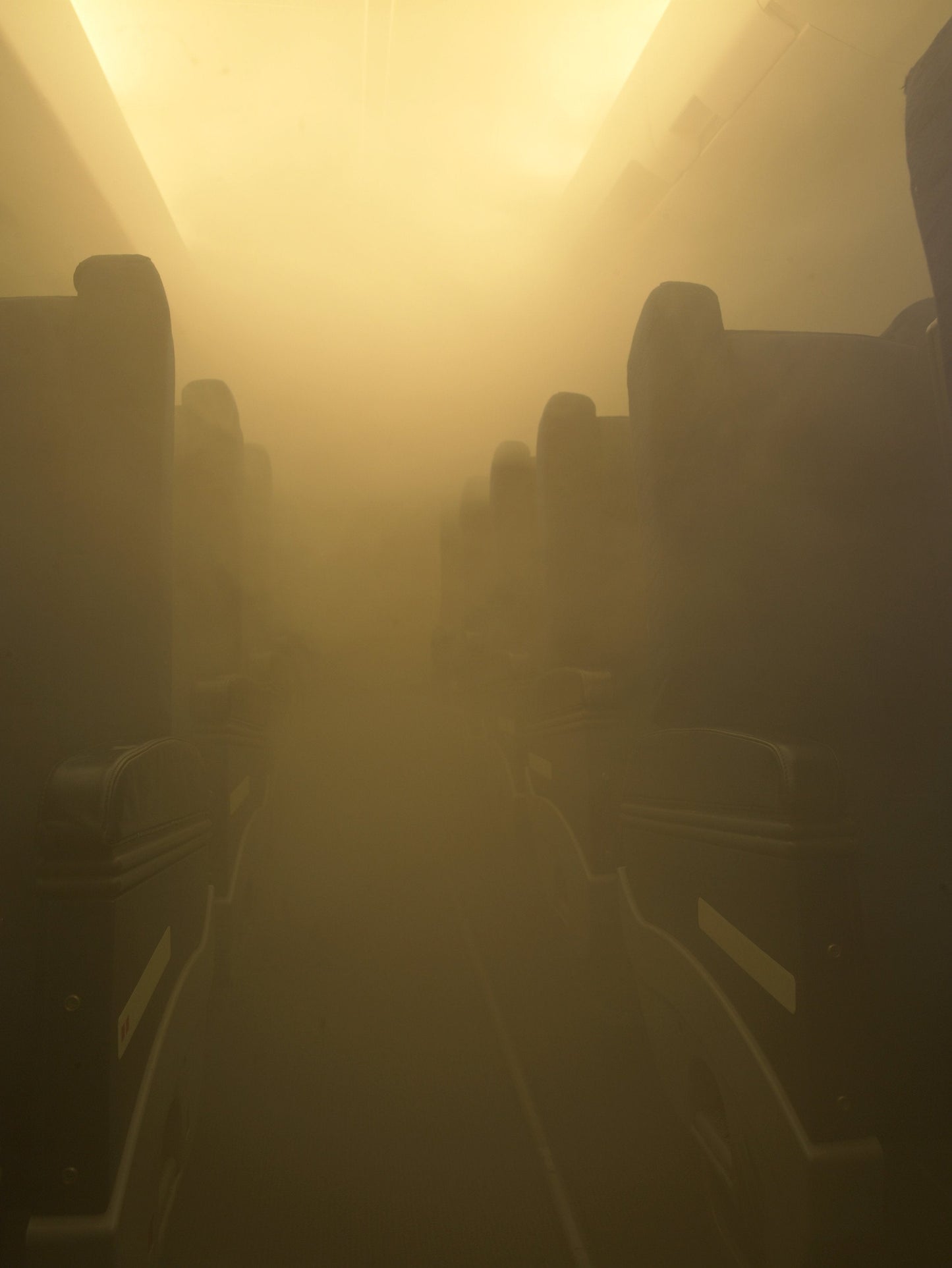

  • Simulation of dense smoke inside an aircraft cabin created by the 501 Trainer smoke machine for realistic evacuation and fire safety training.
1 6

MSS Fire Trainer

MSS Fire Trainer 501 - Smoke Machine - 2100w

MSS Fire Trainer 501 - Smoke Machine - 2100w

£1,299.98
£0.00 £1,299.98
Sale Sold out
Taxes included. Shipping calculated at checkout.
Power Options
  • MADE IN THE UK
  • 5 YEAR WARRANTY
  • FREE UK SHIPPING

MSS Fire Trainer 501 - Smoke Machine - 2100w

Designed to generate instant smoke in very large spaces, the Trainer 501 combines a unique range of features to create a variety of powerful smoke effects.

Made in the UK (5 Year Warranty)

Control

Detachable Remote with 5M of Cable .

0-10v Aux (3Pin Xlr Port) PLC or Keyfob Control

Physical

Length 602 mm (23.1 in.)

Width 395 mm (15.6 in.)

Height 306 mm (12.1 in.)

Weight, dry 17.7 kg (39.1 lb.)

Weight, filled 22.7 kg (50.0 lb.)

Performance

Coverage volume 1320 m³ per minute

Fluid consumption (max.) Continuous effect output. 176 ml per minute

Ready time* 10 minutes

230v Model

AC power: 220-240 V AC nominal, 50/60 Hz
Typical current draw: 9.2 A @ 230 V *

110 V  Model:

AC power: 100-130 V AC nominal, 50/60 Hz
Typical current draw: 15.0 A @ 110 V *

Shipping

Free shipping on all UK online orders. For all other countries, weight based shipping is calculated at checkout.

Most UK in-stock orders will be dispatched same day if ordered before midday, though please allow 1-3 working days for dispatch.

See our full delivery policy for more information, or contact us regarding specific lead times or international order enquiries.

Returns

30 day returns, free of charge within the UK.

Read our full returns policy for more details.

Technical Documentation

MSS Fire Trainer 301 501 user manual
